Capture Every Detail with 4K 60FPS UHD Camera
Max.9.5W
2.0 kg
158 (W) x 193 (H) x 208mm (D)
Capture every moment with unparalleled clarity using our 4K 60FPS UHD Camera. With a resolution four times that of Full HD, this camera delivers breathtakingly sharp and detailed images, ensuring every scene is rendered with lifelike precision.
The 60 frames per second (FPS) recording capability guarantees smooth and fluid motion, making it perfect for high-speed action shots or cinematic video production. Whether you're filming dynamic sports events, creating professional content, or documenting your adventures, this camera's ultra-high-definition quality and seamless frame rate bring your vision to life with stunning realism.

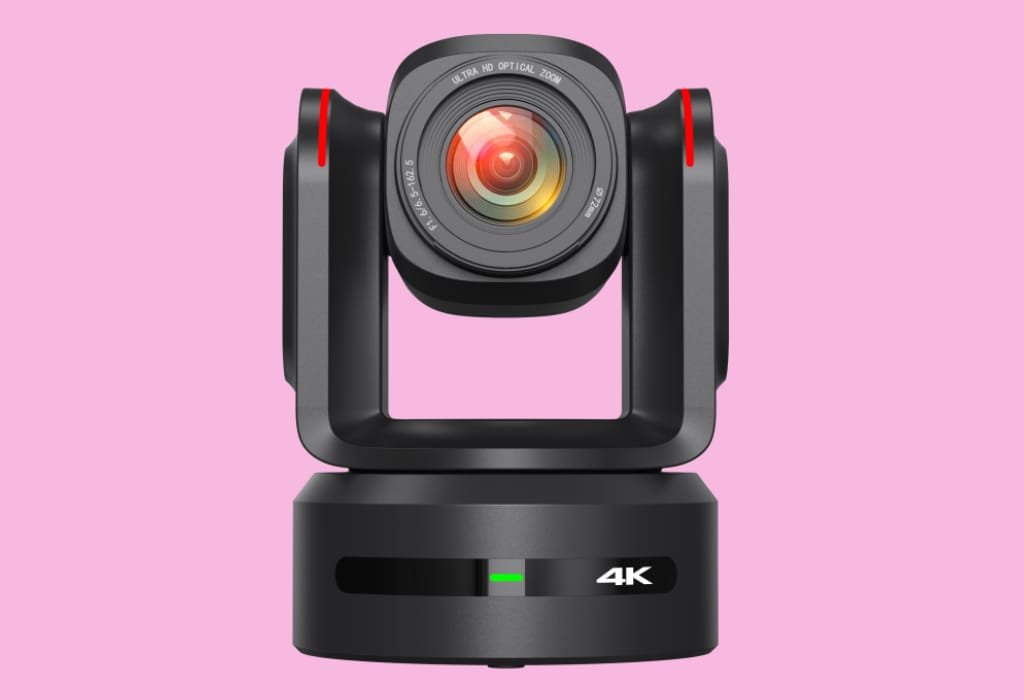

4K 60FPS UHD Camera
| Dimension | 158 (W) x 193 (H) x 208mm (D) |
| Weight | 2.0 kg |
| Color | Black, White (Optional) |
| Operating Temperature | 0~40℃ |
| Storage Temperature | -10~60℃ |
| Input Voltage | DC 12V |
| Input Current | Max.1.3A |
| Power Consumption | Max. 9.5W |
| Accessories | DC 12V power adapter, IR Remote, User manual, USB3.0 Cable, RS-232C Cable, Ceiling bracket, Wall bracket(Optional) |
| Tally Light | Support |
| Image Sensor | SONY 1/1.8" CMOS |
| Pixels | 8.50 Megapixels, 8.29 Effective Megapixels |
| Scan Mode | Line by line |
| Lens | 25X Optical Zoom , f=7.1(W)~171.95mm(T), F1.61~F5.19 |
| Horizontal View Angle | 59.2°(W)~2.5°(T) |
| Vertical View Angle | 34.6(W)~1.4(T) |
| Focus System | Auto, Manual |
| Shutter Speed | 1/50s ~ 1/10000s |
| Minimum Illumination | 0.1Lux |
| Exposure | Auto, Manual, Iris Priority, Shutter Priority, Brightness priority |
| White Balance | Auto, Indoor, Outdoor, Keying, Auto Tracking |
| Backlight Compensation | Support |
| Digital Noise Reduction | 2D&3D Digital noise reduction |
| S/N Ratio | ≥50dB |
| Pan Angle | -171°~+171° |
| Tilt Angle | -30°~+90° |
| Pan Speed | 0.1°/S~120°/S |
| Tilt Speed | 1°~120°/s |
| Preset Positions | 9 preset positions by IR remote controller, 200 preset positions by joystick controller or PC |
| Preset Accuracy | 0.1°±10% |
| Flip | Support |
| Image Freezer | Support |
| POE+ | Support, 802.3at |
| Protocol | UVC 1.1, UAC1.0 |
| Operating System | Window7 and above, MacOS, Linux, Android |
| Video Compression | YUY2, MJPEG |
| Frame Rate | Max.60 |
| UVC PTZ Control | Support |
| Code Stream | Main code stream*1, Sub code stream*1 |
| Main Stream Resolution | 3840*2160, 1920*1080, 1280*720 |
| Sub Stream Resolution | 640*480, 640*360, 352*288, 320*240, 176*144 |
| Bitrate Control | VBR, CBR |
| Audio Compression | AAC |
| Sampling Rate | 48K, 44.1K |
| HDMI Interface | 1 Line, HDMI：Version 2.0 |
| SDI Interface | 1 Line, 3G-SDI 2 Line, 12G-SDI |
| USB Interface | 1 Line, USB3.0, Type-B Socket |
| Network Interface | 1 Line, RJ45: 10M/100M adaptive Ethernet port |
| Audio Interface | 1 Line, Line In, 3.5mm |
| Serial Interface | 1 Line, RS232 IN/Out: 8-Pin Mini Din, up to 30 meters, VISCA/Pelco-D/Pelco-P
Protocol. 1 Line, RS422/485: 9-Core Phoenix Interface, up to 1200 meters, VISCA/Pelco-D/Pelco-P Protocol. |
| Power Interface | IEC 60130-10 Type A |
